A480

Run swap

1. Description

In timing races, it sometimes happens that a finishtime is assigned to a wrong CU (competing unit ). The A480 function provides a swapping facility to swap runs of two CU's (Or swap two runs of the same CU). For tracebility reasons, the swappings are logged in a log table. The two CU's between which the finish times can be swapped are called A_CU and B_CU.

Remark: A run swap for slalom includes swapping the penalties.

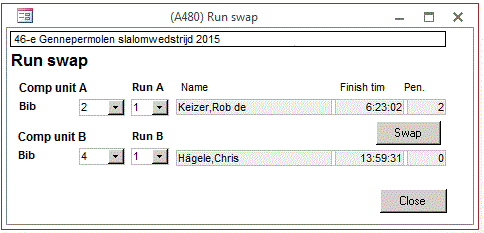

2. Screen shot

3. Access path

F000-Menu
F480-Finishtime-swap
F481-Finishtime-swap-sub

Function structure

Form Control Subform, action Query Table Attribute
F480-Finishtime-swap     Q480-Finishtime-swaplog T480-Finishtime-swaplog
T500-Competing-unit

  dropbox
A_CU_id
  Q512-Start-number-select T500-Competing-unit
Q503-Competing-unit-name

  dropbox
B_CU_id
  Q512-Start-number-select T500-Competing-unit
Q503-Competing-unit-name

  subform
A_CU
F481-Finishtime-swap-sub
  subform
B_CU
F481-Finishtime-swap-sub
  button
buttonSwap
action (1)
  button
buttonClose
closes the form

Action (1) - swapping of the T510-Run records of A_CU and B_CU.
- get the T510-Run!run-id's of A_CU and B_CU
- update competing-unit-id in T510-Run of A_CU to competing-unit-id of B_CU
- update competing-unit-id in T510-Run of B_CU to competing-unit-id of A_CU
- write the finishtimes of A_CU and B_CU before the swap to T480-Finishtime-swaplog

Form Control Subform, action Query Table Attribute
F481-Finishtime-swap-sub     Q481-CU-name-finishtime T510-Run
Q503-Competing-unit-name





Change history

date version change
Feb2016 A5.4 Reviewed and updated
Aug2004 A4.2 Function new added.
