Network configuration Canoe/kayak Slalom Competitions

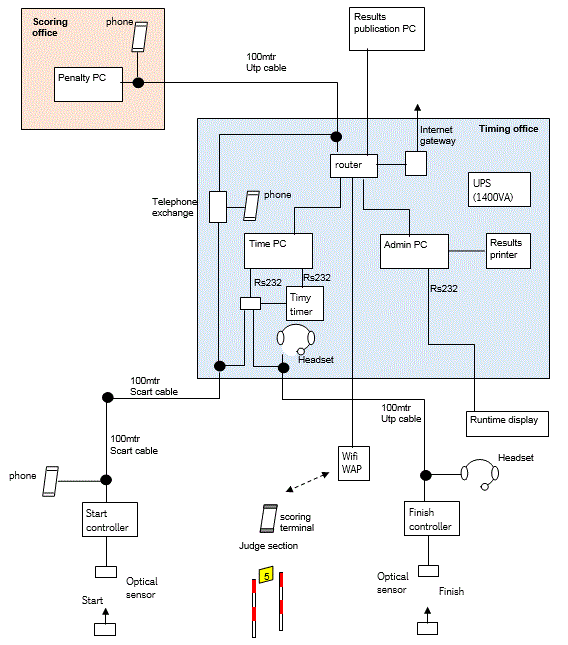

The diagram below provides an overview of the Ariadne network and equipment configuration for time measurement and run processing of Canoe/kayak Slalom competitions.

Jan 2016
